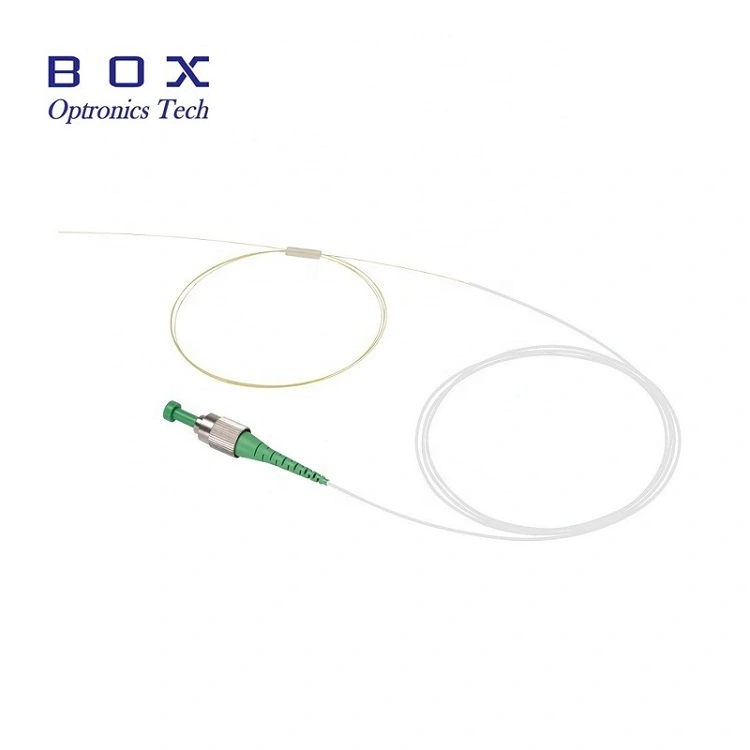

The wavelength of a pump laser diode varies at different operating temperatures. The 980nm pump FBG Fiber Bragg grating wavelength lock is used to stabilize the wavelength and intensity of the optically amplified pump laser. By precisely locking the pump laser diode through feedback of a small portion of the laser signal, this type of control significantly improves the power and wavelength output accuracy and reliability of the pump laser. Specifically, it eliminates spectral mode jumps in the pump laser, reduces power intensity fluctuations caused by temperature and pump drive current variations, and greatly improves the performance of the pump laser. It is also commonly used for stabilizing distributed feedback lasers in wavelength division multiplexing systems, the optical path of tunable lasers, and fiber resonators in Raman systems. Depending on the customer's locking requirements for the pump laser, single-grating or dual-grating configurations are available. The dual-grating configuration further improves the output spectral characteristics of uncooled pump lasers.
♦ High wavelength locking accuracy
♦ Extremely low temperature dependence
♦ Low polarization dependence
♦ Periodic locking covers all channels
♦ Pump laser
♦ Stabilization of tunable laser modules
| Parameter | Unit | Value |
| Wavelength | nm | 785~790、815、940、960~965、972~978、1063~1070 |
| Wavelength tolerance | nm | +/-0.25 |
| Reflectivity | % | >1 |
| Bandwith@-3dB | nm | >0.1 |
| Recoating | -- | Acrylate |
| Tensile strength | kpsi | >100 |
| Fiber | -- | HI 1060, HI1060flex, HI 980, PM980or CS1060, or customized |
| Fiber coating | -- | Acrylate |
| Fiber length | m | 1M on both sides, or customized |
| Connector | -- | Bare fiber, FC/APC, SC/APC, or customized |
